8-bit microcontroller (MCU) featuring 7KB FLASH program memory and 256B RAM. Operates at up to 16MHz with an 8-bit data bus width. Offers 17 programmable I/O pins and supports I2C, SPI, and UART interfaces. Includes 3 timers/counters, 1 PWM channel, and an internal oscillator. Packaged in a 20-pin PDIP, this RoHS compliant component functions across a -40°C to 125°C temperature range.
Frequency16MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F721-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Height
0.195inch
Interface
I2C, SPI, USART, UART
Length
1.06inch
Max Frequency
16MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of Bits
8
Number of I/Os
17
Number of Programmable I/O
17
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F721-E/P Datasheet
Download the complete datasheet for Microchip PIC16F721-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

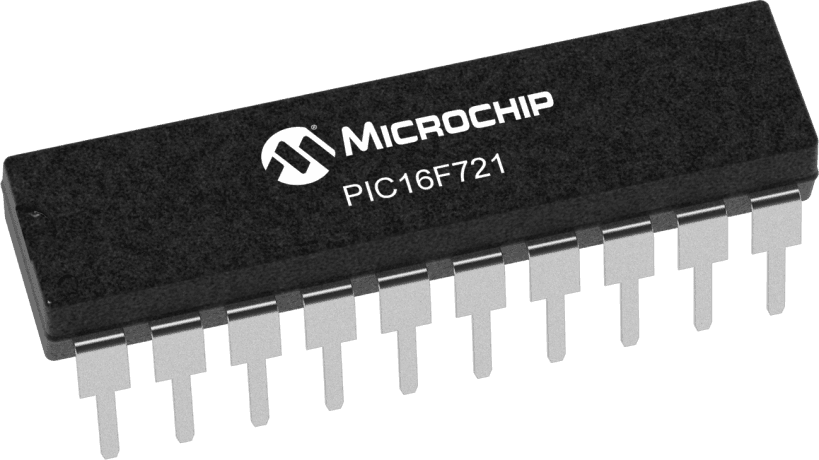

Product Images
