8-bit FLASH microcontroller featuring an 8b data bus and a 20MHz core frequency. This surface mount device offers 25 programmable I/Os, 2 PWM channels, and 3 timers/counters. Integrated peripherals include I2C, SPI, SCI, UART, USART interfaces, Brown-out Detect/Reset, POR, and a Watchdog Timer. Operating from 2.3V to 5.5V, it boasts 3.5KB of FLASH memory and 128B of RAM, with a maximum power dissipation of 800mW. Housed in a RoHS compliant SOIC package, it operates within a temperature range of -40°C to 125°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F722-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SCI, UART, USART
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F722-E/SO Datasheet
Download the complete datasheet for Microchip PIC16F722-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

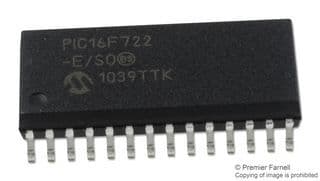

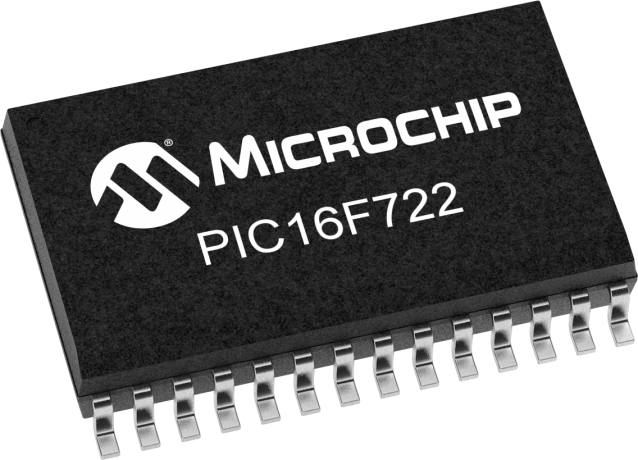

Product Images
