8-bit Flash Microcontroller, operating at up to 20MHz, featuring an 8-bit PIC core architecture. This surface mount device offers 25 programmable I/O pins, 128B RAM, and 3.5KB of FLASH memory. Integrated peripherals include I2C, SPI, SCI, UART, USART interfaces, 2 PWM channels, 3 timers/counters, and 11 ADC channels with 1 A/D converter. Packaged in a 28-pin SSOP (5.6mm width, 10.5mm length, 1.85mm height), this RoHS compliant component operates from 2.3V to 5.5V with a max power dissipation of 800mW and an operating temperature range of -40°C to 125°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F722-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.85mm
Interface
I2C, SPI, SCI, UART, USART
Lead Free
Lead Free
Length
10.5mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F722-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F722-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

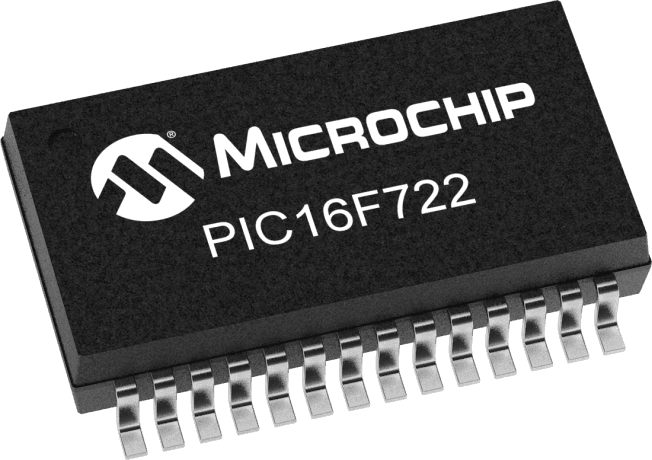

Product Images
