8-bit FLASH microcontroller featuring an 8b PIC core architecture, operating at up to 20MHz. This surface mount device offers 3.5KB of FLASH memory and 128B of RAM, with 25 programmable I/Os. Integrated peripherals include I2C, SPI, SCI, UART, USART interfaces, 11 ADC channels, 2 PWM channels, and 3 timers/counters. Housed in a 28-pin SOIC package, it supports a supply voltage range of 2.3V to 5.5V and operates from -40°C to 85°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications

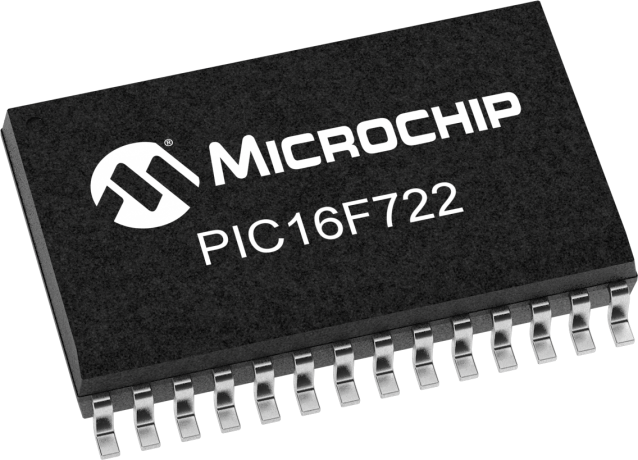

Microchip PIC16F722-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
2.35mm
Interface
I2C, SPI, SCI, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
11
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F722-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F722-I/SO to view detailed technical specifications.
