8-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 20MHz. This surface mount device offers 3.5KB of program memory and 128B of RAM, with 25 programmable I/O pins. Integrated peripherals include I2C, SPI, SCI, UART, USART, SSP interfaces, 11 ADC channels, 2 PWM channels, and 3 timers/counters. The SSOP-28 package measures 10.5mm x 5.6mm x 1.85mm and operates within a voltage range of 2.3V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F722-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
1.85mm
Interface
I2C, SPI, SCI, UART, USART, SSP
Lead Free
Lead Free
Length
10.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
11
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F722-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F722-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

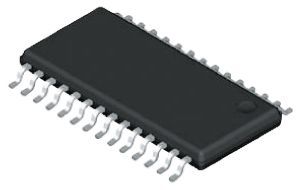

Product Images
