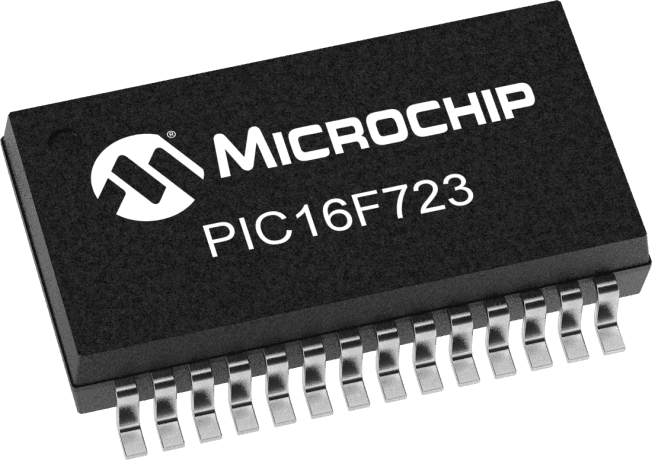

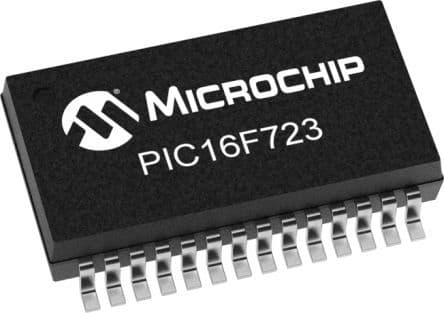

The PIC16F723-E/SS is an 8-bit microcontroller with a core architecture of PIC, operating at frequencies up to 20MHz. It features 7KB of FLASH memory and 192B of RAM, with a maximum power dissipation of 800mW and a maximum supply voltage of 5.5V. The device is available in a surface mount SSOP-28 package and is compliant with RoHS regulations. It operates over a temperature range of -40°C to 125°C and supports various interfaces including I2C, SPI, SCI, UART, and USART. The microcontroller also includes 3 timers/counters and 25 programmable I/O lines.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC16F723-E/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip PIC16F723-E/SS technical specifications.
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI, SCI, UART, USART |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Programmable I/O | 25 |
| Number of Timers/Counters | 3 |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 192B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| RoHS | Compliant |
