8-bit PIC microcontroller featuring 7KB FLASH memory and a 20MHz clock speed. This surface mount device offers 25 programmable I/O pins, multiple communication interfaces including I2C, SPI, and UART, and 11 analog-to-digital converter channels. Operating from 2.3V to 5.5V, it includes integrated peripherals like a watchdog timer and PWM capabilities, housed in a 28-pin SSOP package.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F723-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.85mm
Interface
I2C, SPI, SCI, UART, USART, SSP
Lead Free
Lead Free
Length
10.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F723-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F723-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

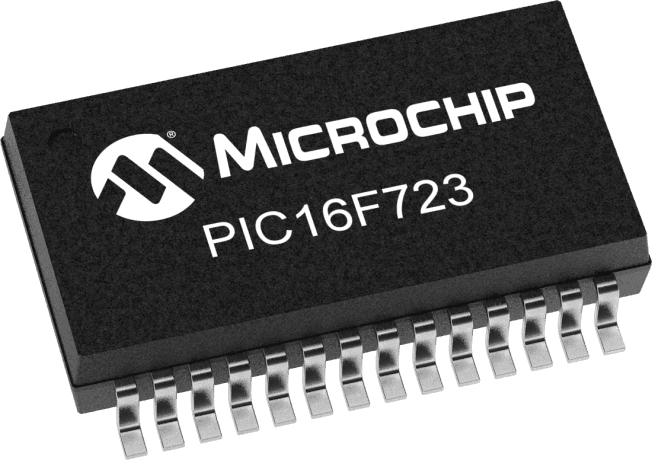

Product Images
