8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This surface mount device offers 192B RAM, 25 programmable I/O pins, and multiple interfaces including I2C, SPI, USART, and UART. Integrated peripherals include POR, PWM, and a watchdog timer, with support for 11 ADC channels and 2 PWM channels. Operating within a 2.5V to 5.5V supply range, it is RoHS compliant and packaged for tape and reel.
Frequency20MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F723AT-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F723AT-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F723AT-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

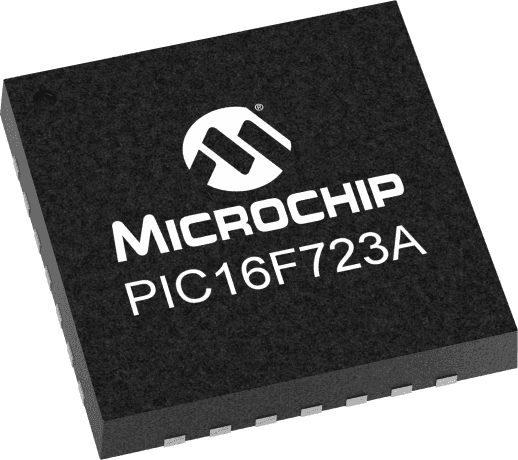

Product Images
