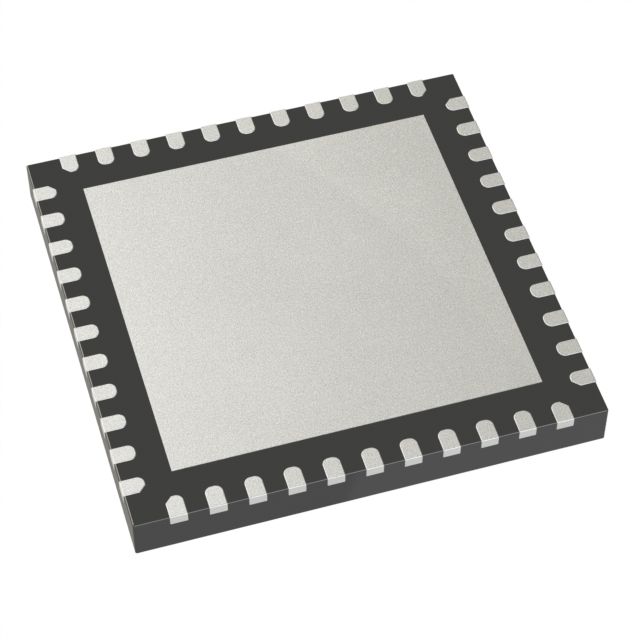

8-bit FLASH microcontroller featuring an 8-bit PIC core architecture, operating at up to 20MHz. This surface mount device offers 7KB of FLASH memory, 192B of RAM, and 36 programmable I/O pins. Integrated peripherals include I2C, SPI, SCI, UART, USART interfaces, 14 ADC channels, and 2 PWM channels. The QFN package measures 8mm x 8mm x 0.95mm and supports a supply voltage range of 2.3V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F724-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, SCI, UART, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
14
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F724-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F724-I/ML to view detailed technical specifications.
