8-bit RISC microcontroller featuring 7KB FLASH memory and 192B RAM. Operates at a maximum frequency of 20MHz with an 8-bit address and data bus. Offers 22 programmable I/O pins, 5 ADC channels, 2 PWM channels, and 3 timers/counters. Supports I2C, SPI, and USART/UART interfaces, with integrated peripherals including Brown-out Detect/Reset, POR, WDT, and I2C. Packaged in a 28-pin SSOP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F73-I/SS technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.83mm
Interface
I2C, SPI, USART, UART, SSP
Lead Free
Lead Free
Length
10.34mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
900uA
Watchdog Timer
Yes
Width
5.38mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F73-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F73-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

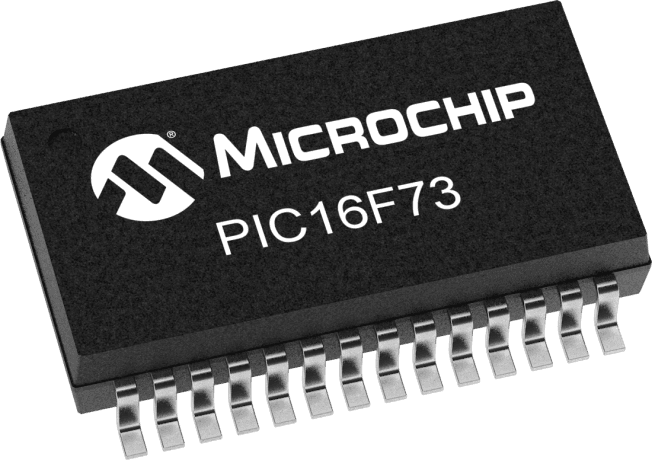

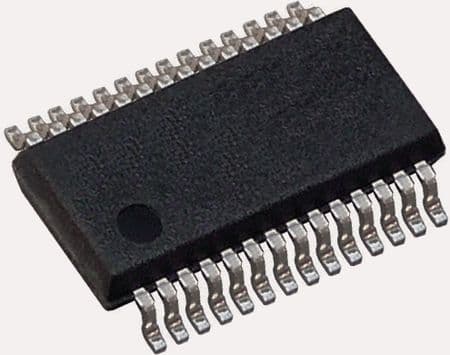

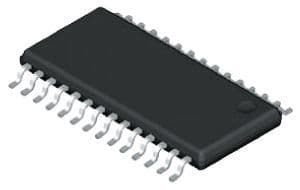

Product Images
