8-bit RISC microcontroller featuring 7KB FLASH memory and 368B RAM. Operates at up to 20MHz with an 8-bit data bus. Offers 25 programmable I/O pins, 11 A/D converter channels, and 3 PWM channels. Supports I2C, SPI, and UART interfaces. Packaged in a 28-pin DIP for through-hole mounting.
Frequency20MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F737-I/SP technical specifications.
General
Access Time
20us
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
3.43mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.18mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH, , CMOS
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F737-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F737-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

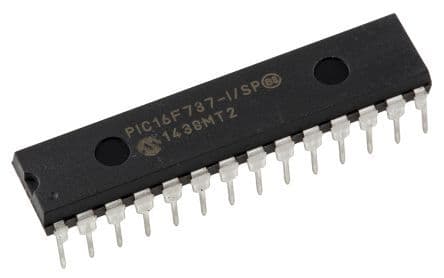

Product Images
