8-bit RISC Flash Microcontroller (MCU) operating at 20MHz. Features 7KB of FLASH memory, 192B RAM, and 33 programmable I/O pins. Supports I2C, SPI, and UART interfaces, with 8 ADC channels and 2 PWM channels. Packaged in a 44-pin TQFP (10.1mm x 10.1mm x 1.05mm) for surface mounting. Operates from 4V to 5.5V with a temperature range of -40°C to 85°C. Includes integrated peripherals like Brown-out Detect, POR, WDT, and I2C.
Frequency20MHz
PackageTQFP
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F74-I/PT technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART, SSP
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10.1mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
900uA
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F74-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F74-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

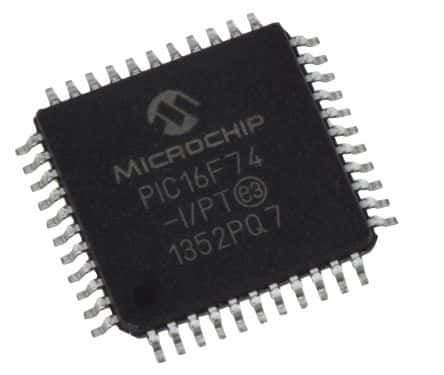

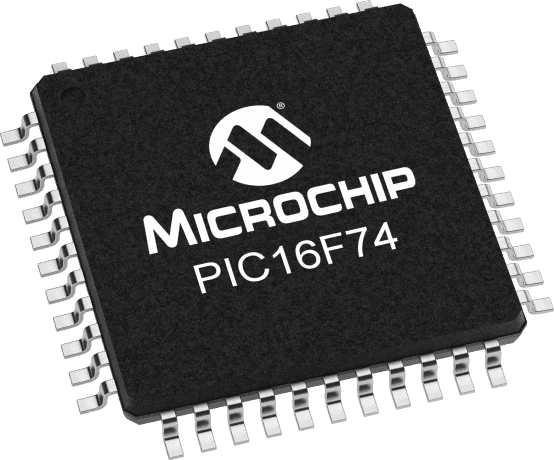

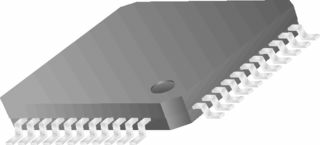

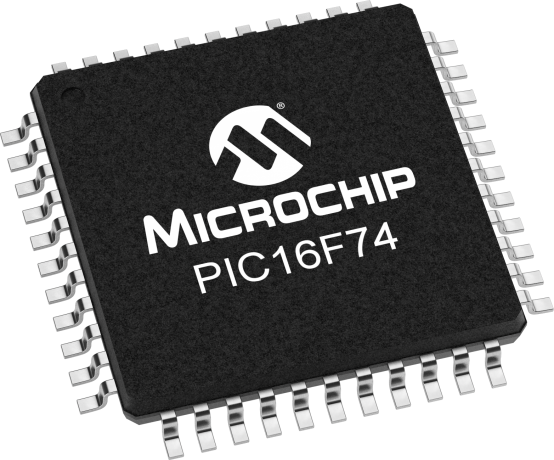

Product Images
