8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 20MHz. This FLASH memory microcontroller offers 3.5KB of memory, 128B of RAM, and 12 programmable I/O pins. Integrated peripherals include 8 ADC channels, 4 timers/counters, and a USB interface. Packaged in a 4mm x 4mm QFN, it operates from 2V to 5.5V, with a supply current of 260uA, and a temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
Current260uA
Quick Jump:
Technical Specifications
Microchip PIC16F753-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
USB
Lead Free
Lead Free
Length
4mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
260uA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F753-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F753-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

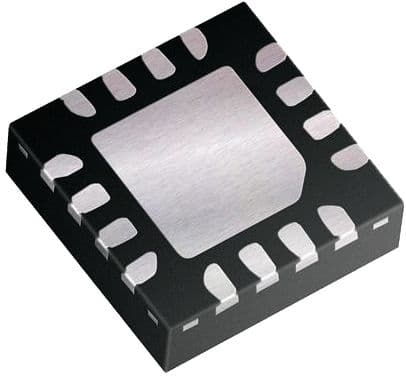

Product Images
