8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 20MHz. This FLASH memory microcontroller offers 3.5KB of program memory and 128B of RAM. It includes 12 programmable I/O pins, 8 ADC channels, and 4 timers/counters, along with a single USB interface. The device supports a supply voltage range of 2V to 5.5V and operates from -40°C to 85°C, packaged in an 8.65mm x 3.9mm x 1.5mm SOIC case.
Frequency20MHz
PackageSOIC
Current260uA
Quick Jump:
Technical Specifications
Microchip PIC16F753-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.5mm
Interface
USB
Length
8.65mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
260uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F753-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F753-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

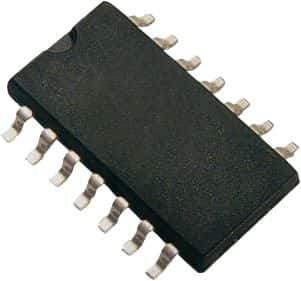

Product Images
