8-bit RISC microcontroller featuring 20MHz operation and 14KB FLASH memory. This surface mount device offers 25 programmable I/Os, 3 PWM channels, and 3 timers/counters. Interfaces include I2C, SPI, and UART/USART. Operating voltage ranges from 4V to 5.5V, with an internal oscillator. The SSOP package is RoHS compliant and operates between -40°C and 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F767-I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
3
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F767-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F767-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

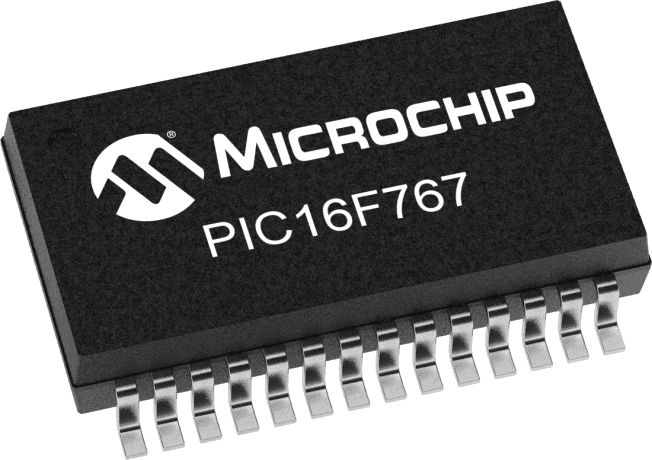

Product Images
