8-bit RISC Flash Microcontroller featuring a 20MHz core frequency. This surface-mount device offers 14KB of FLASH memory and 368B of RAM, with 22 programmable I/O pins. Integrated interfaces include I2C, SPI, USART, and UART, supported by three timers/counters and a watchdog timer. Operating from a 4V to 5.5V supply, it functions across a -40°C to 85°C temperature range.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F76T-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
22
Number of Timers/Counters
3
Operating Supply Voltage
5V
Package Quantity
1600
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F76T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F76T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

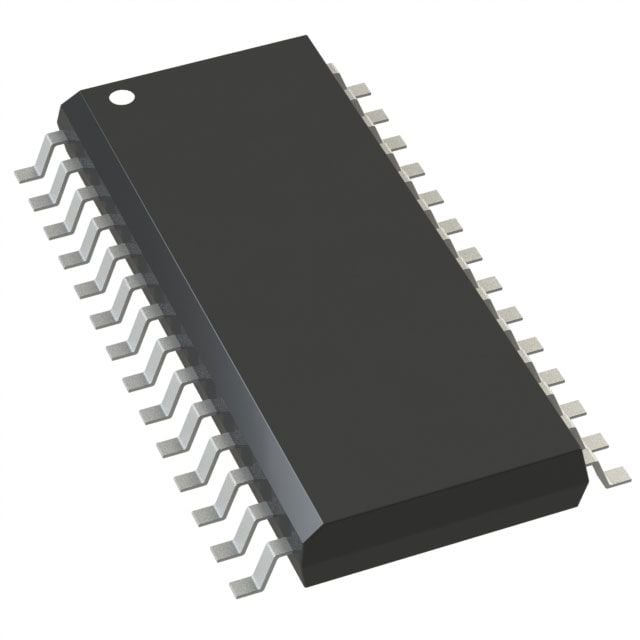

Product Images
