8-bit RISC Flash Microcontroller, operating at up to 20MHz. Features 14KB Flash memory, 368B RAM, and 22 programmable I/O pins. Supports I2C, SPI, and USART/UART interfaces. Packaged in a 28-pin SSOP for surface mounting, with an operating temperature range of -40°C to 85°C and a supply voltage of 4V to 5.5V. Includes 3 timers/counters and a watchdog timer.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F76T-I/SS technical specifications.
General
| Access Time | 20us |
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Programmable I/O | 22 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2100 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 368B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F76T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F76T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

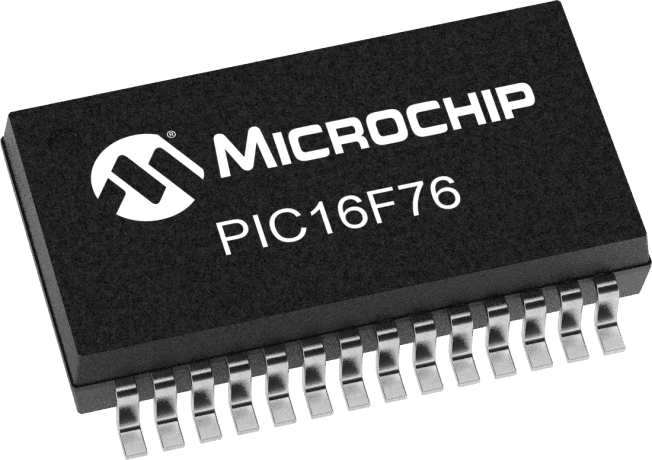

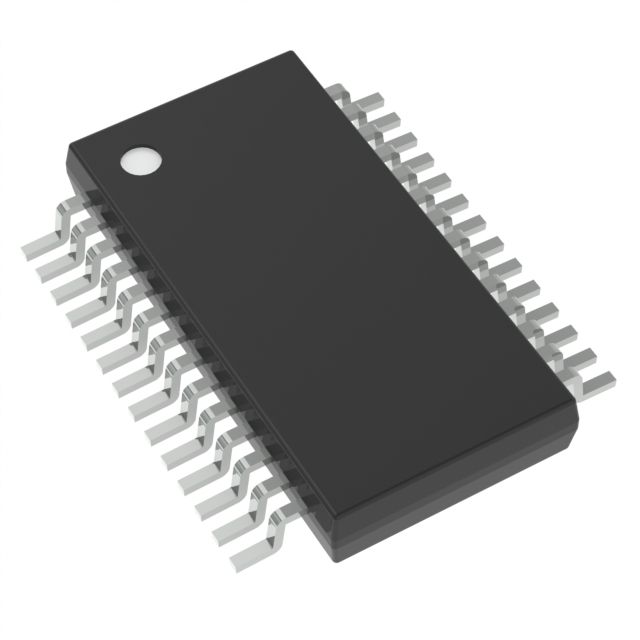

Product Images
