8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM. Operates at a 20MHz maximum frequency with an 8-bit address and data bus. Offers I2C, SPI, and UART interfaces, along with 8 analog-to-digital converter channels and 2 PWM channels. This surface-mount device is housed in a 44-pin TQFP package (10.1mm x 10.1mm x 1.05mm) and supports a supply voltage range of 4V to 5.5V. Includes integrated peripherals such as a watchdog timer and brown-out detect/reset.
Frequency20MHz
PackageTQFP
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F77-I/PT technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
14KB
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART, SSP
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10.1mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
900uA
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F77-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F77-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

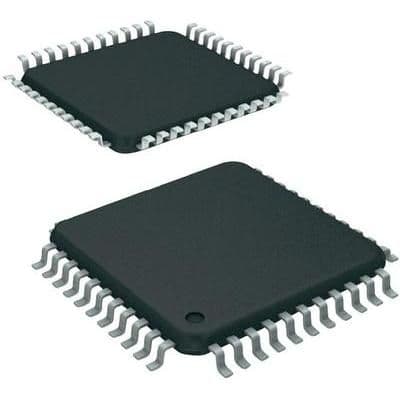

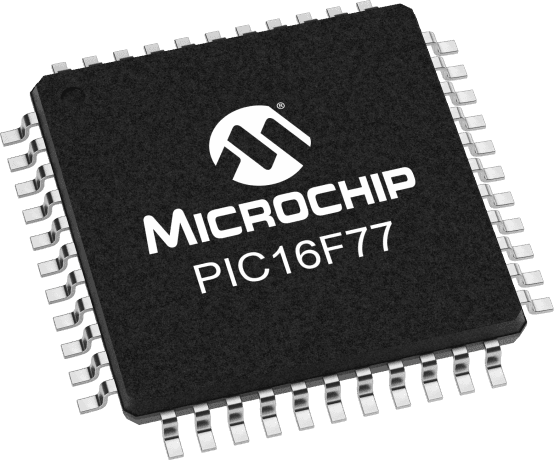

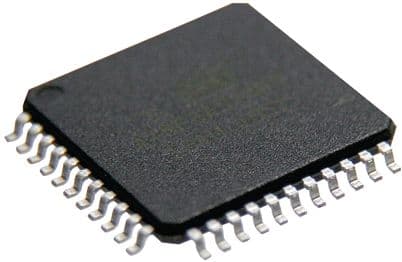

Product Images
