8-bit RISC microcontroller featuring 3.5KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit data bus. Includes 17 programmable I/Os, 2 PWM channels, and 3 timers/counters. Supports RS-232 and USB interfaces. Packaged in a 20-pin SSOP for surface mounting, with an operating voltage range of 4.2V to 5.5V and a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F785-I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Interface
RS-232, USB
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
600mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH, , CMOS
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
17
Number of Programmable I/O
17
Number of PWM Channels
2
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F785-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F785-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

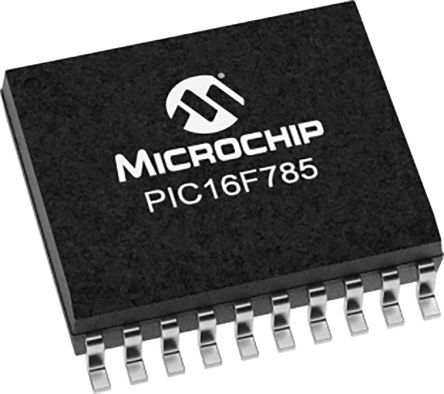

Product Images
