8-bit RISC microcontroller featuring 3.5KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers I2C, SPI, and SSP interfaces, 16 I/O pins, 5 ADC channels, and 3 timers/counters. Includes integrated peripherals like WDT, POR, and PWM. Packaged in a lead-free PDIP-18 through-hole mount.
Frequency20MHz
PackagePDIP
Current890uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F819-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
3.68mm
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Length
22.99mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Through Hole
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F Series
Supply Current
890uA
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F819-I/P Datasheet
Download the complete datasheet for Microchip PIC16F819-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

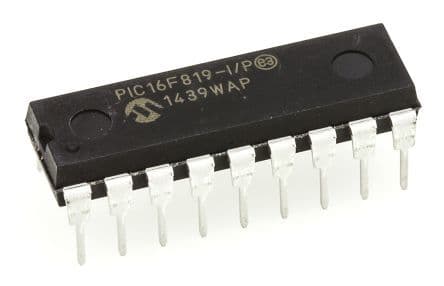

Product Images
