8-bit CMOS microcontroller featuring a PIC CPU core, operating at up to 20MHz. This surface-mount device offers 3.5KB of FLASH memory, 256B RAM, and 16 programmable I/O pins. Integrated peripherals include I2C, SPI, and SSP interfaces, three timers/counters, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. It operates from a 4V to 5.5V supply, with a typical 5V operating voltage, and is housed in a 20-pin SSOP package.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F819-I/SSTSL technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F819-I/SSTSL Datasheet
Download the complete datasheet for Microchip PIC16F819-I/SSTSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

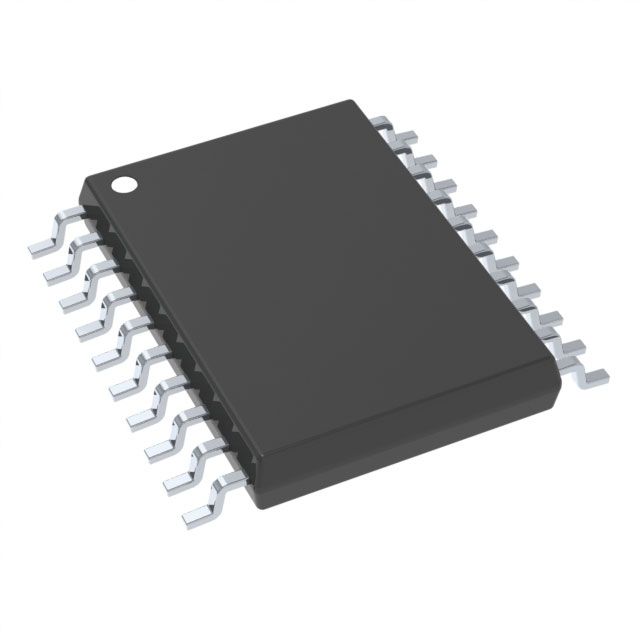

Product Images
