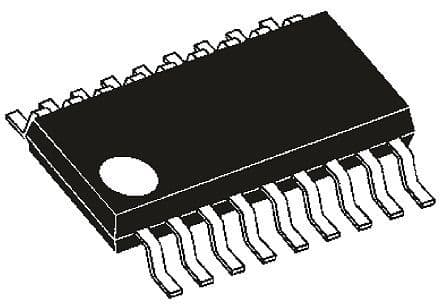

8-bit RISC microcontroller featuring 10MHz clock speed and 1.75KB FLASH memory. This PDSO18 packaged MCU offers 13 programmable I/Os, 68 bytes of RAM, and a single timer/counter. Operating from 2V to 6V, it includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. Designed for surface-mount applications, it operates within a 0°C to 70°C temperature range.
Frequency10MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F84-10/SO technical specifications.
General
Access Time
10us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
10MHz
Height
2.36mm
Lead Free
Lead Free
Length
11.73mm
Max Frequency
10MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
6V
Memory Size
1.75KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F84-10/SO Datasheet
Download the complete datasheet for Microchip PIC16F84-10/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
