8-bit RISC microcontroller featuring 4MHz clock speed and 1.75KB FLASH memory. This integrated circuit offers 68 bytes of RAM, 13 programmable I/O pins, and a single timer/counter. It operates with an external oscillator and includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. The component is housed in a lead-free PDIP package with a maximum operating temperature of 85°C.
Frequency4MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F84A-04I/P technical specifications.
General
| Access Time | 4us |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 1.75KB |
| Frequency | 4MHz |
| Height | 3.68mm |
| Lead Free | Lead Free |
| Length | 22.99mm |
| Max Frequency | 4MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 1.75KB |
| Memory Type | FLASH, , RAM |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of I/Os | 13 |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 1 |
| Oscillator Type | External |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 68B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F84A-04I/P Datasheet
Download the complete datasheet for Microchip PIC16F84A-04I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

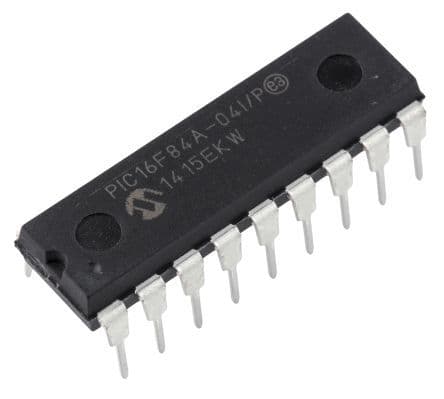

Product Images
