8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of FLASH/EEPROM memory. This surface-mount device operates with an 8-bit address and data bus, offering 13 programmable I/O pins and a single timer/counter. It supports an external oscillator and includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. Operating within a 4V to 5.5V supply range, it has a maximum power dissipation of 800mW and a temperature range of 0°C to 70°C.
Frequency20MHz
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F84A-20/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
20MHz
Height
2.39mm
Lead Free
Lead Free
Length
11.73mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH, , EEPROM
Min Supply Voltage
4V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
13
Number of Programmable I/O
13
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
42
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Watchdog Timer
Yes
Width
7.59mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F84A-20/SO Datasheet
Download the complete datasheet for Microchip PIC16F84A-20/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

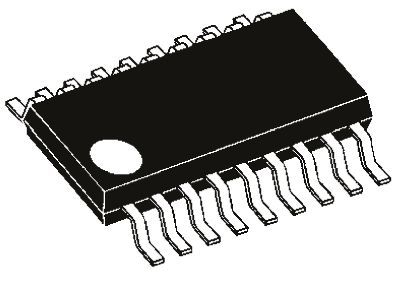

Product Images
