8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of FLASH memory. This surface mount device operates from 4V to 5.5V, with a typical 5V supply, and offers 13 programmable I/O pins. Includes one timer/counter, POR, and WDT peripherals. Packaged in a 20-pin SSOP, this lead-free and RoHS compliant component is suitable for operation between 0°C and 70°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F84A-20/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
67
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F84A-20/SS Datasheet
Download the complete datasheet for Microchip PIC16F84A-20/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

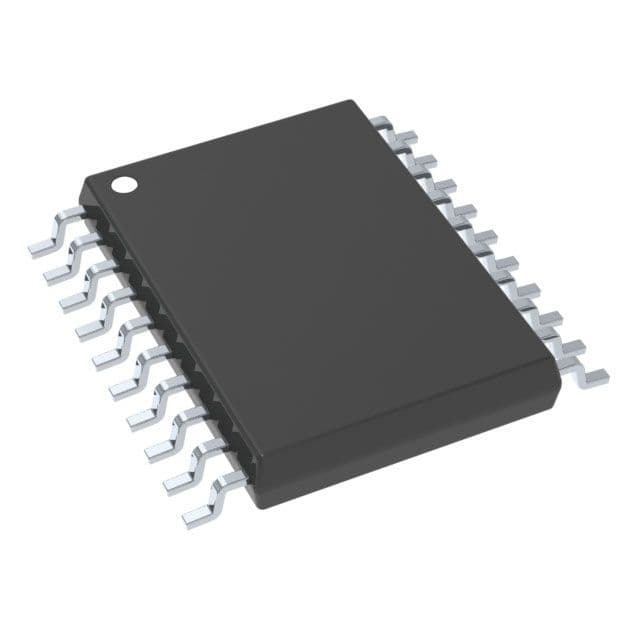

Product Images
