8-bit RISC microcontroller featuring a 20MHz clock speed and 1.75KB of FLASH memory. This PDIP-packaged MCU offers 13 programmable I/O pins, an 8-bit address and data bus, and a single timer/counter. Operating from 4V to 5.5V, it includes Power-on Reset (POR) and a Watchdog Timer (WDT). Designed for through-hole mounting, it operates across a -40°C to 85°C temperature range.
Frequency20MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F84A-20I/P technical specifications.
General
| Access Time | 20us |
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 1.75KB |
| Frequency | 20MHz |
| Height | 3.68mm |
| Lead Free | Lead Free |
| Length | 22.99mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 1.75KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of I/Os | 13 |
| Number of Programmable I/O | 13 |
| Number of Timers/Counters | 1 |
| Oscillator Type | External |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 68B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Supply Current | 2mA |
| Termination | Through Hole |
| Watchdog Timer | Yes |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F84A-20I/P Datasheet
Download the complete datasheet for Microchip PIC16F84A-20I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

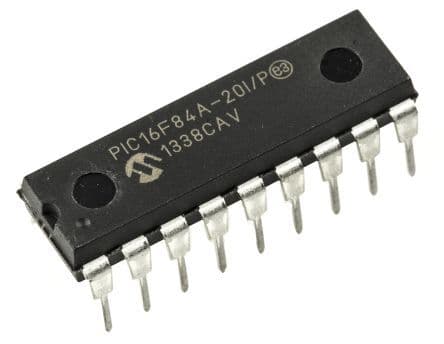

Product Images
