8-bit RISC microcontroller featuring 4MHz clock speed and 1.75KB FLASH memory. This surface mount device offers 13 programmable I/O pins, 68 bytes of RAM, and a single timer/counter. Operating from 4V to 5.5V, it includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. Packaged in an 18-pin SOIC, it operates across a -40°C to 85°C temperature range and is RoHS compliant.
Frequency4MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F84AT-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
13
Number of Timers/Counters
1
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
68B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F84AT-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16F84AT-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

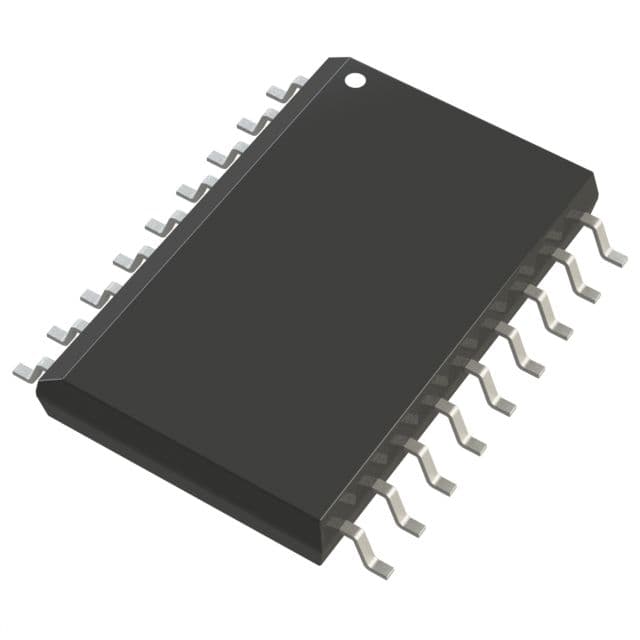

Product Images
