8-bit RISC microcontroller featuring 20MHz operation and 7KB FLASH memory. This surface-mount device offers 16 programmable I/Os, 3 timers/counters, and multiple interfaces including SSP, USART, I2C, SPI, and UART. It operates from 4V to 5.5V, with a temperature range of -40°C to 85°C, and includes integrated peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. The SSOP package measures 7.5mm x 5.6mm x 1.85mm.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F87-I/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.85mm
Interface
SSP, USART, I2C, SPI, UART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH, , RAM
Min Supply Voltage
4V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F87-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F87-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

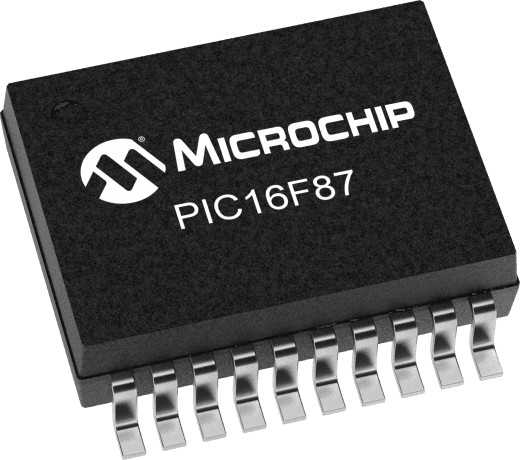

Product Images
