8-bit RISC Flash Microcontroller featuring an 8b data bus and a 20MHz maximum frequency. This surface mount device offers 7KB of FLASH memory, 192B RAM, and 22 programmable I/O pins. Integrated peripherals include I2C, SPI, USART, UART, and PWM, alongside 3 timers/counters and a watchdog timer. Operating voltage ranges from 4V to 5.5V, with an access time of 20µs. Packaged in SSOP, this RoHS compliant component operates between -40°C and 125°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F873A-E/SS technical specifications.
General
| Access Time | 20us |
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Programmable I/O | 22 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 192B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F873A-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F873A-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

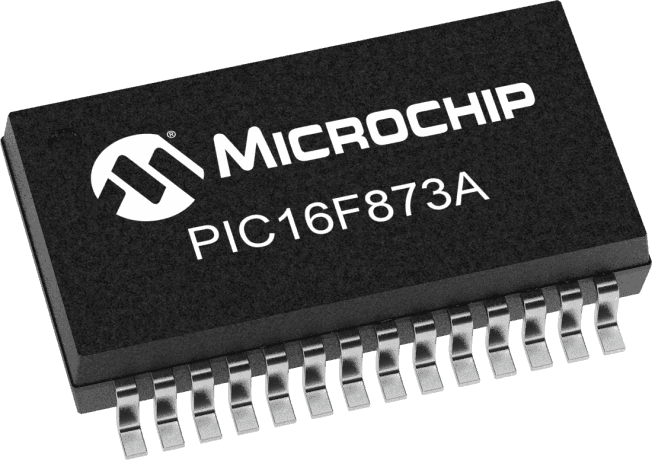

Product Images
