8-bit RISC Flash Microcontroller operating at 20MHz. Features 7KB Flash memory, 192B RAM, and 33 programmable I/Os. Includes USART, I2C, and SPI interfaces, 8 ADC channels, and 2 PWM channels. Packaged in PLCC with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePLCC
Quick Jump:
Technical Specifications
Microchip PIC16F874-20I/L technical specifications.
General
Access Time
20us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
3.68mm
Interface
USART, I2C, SPI, UART
Lead Free
Lead Free
Length
16.66mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Number of ADC Channels
8
Number of Bits
8
Number of Ethernet Channels
0
Number of I/Os
33
Number of Programmable I/O
33
Number of PWM Channels
2
Number of Timers/Counters
3
Number of USB Channels
0
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
16.66mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F874-20I/L Datasheet
Download the complete datasheet for Microchip PIC16F874-20I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

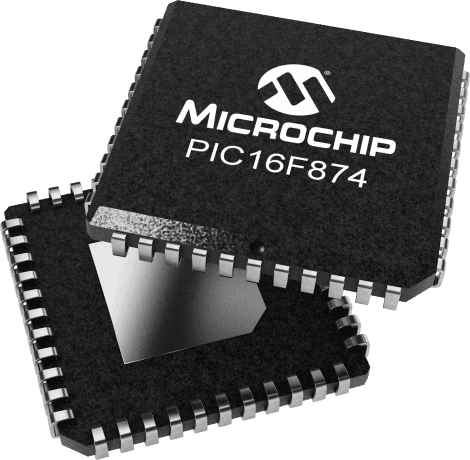

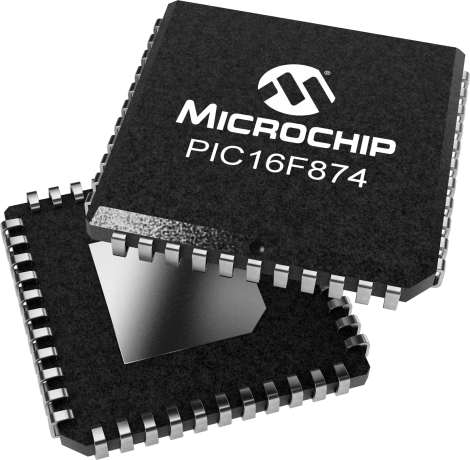

Product Images
