8-bit RISC microcontroller featuring 14KB FLASH memory and 368B RAM. Operates at a maximum frequency of 20MHz with an 8-bit address and data bus. Offers multiple interfaces including I2C, SPI, USART, and UART, alongside 22 programmable I/O pins. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 28-pin DIP for through-hole mounting, with an operating temperature range of -40°C to 85°C and a supply voltage of 4V to 5.5V.
Frequency20MHz
PackageDIP
Current1.6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F876A-I/SP technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Density
14KB
Frequency
20MHz
Height
3.43mm
Interface
I2C, SPI, USART, UART, SSP
Lead Free
Lead Free
Length
35.18mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of Ethernet Channels
1
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.6mA
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F876A-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F876A-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

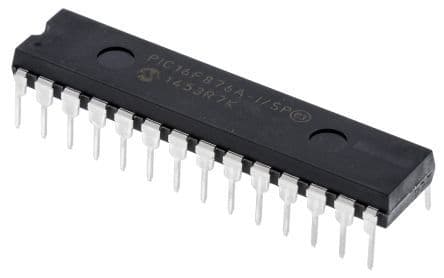

Product Images
