8-bit RISC microcontroller featuring 4MHz clock speed and 14KB FLASH memory. This microcontroller offers 368B RAM, 33 programmable I/O pins, and multiple interfaces including USART, I2C, SPI, and UART. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operates within a 4V to 5.5V supply voltage range and is housed in a PLCC package.
Frequency4MHz
PackagePLCC
Current1.6mA
Quick Jump:
Technical Specifications
Microchip PIC16F877-04/L technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
3.68mm
Interface
USART, I2C, SPI, UART, SSP
Lead Free
Lead Free
Length
16.66mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1.6mA
Watchdog Timer
Yes
Width
16.66mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F877-04/L Datasheet
Download the complete datasheet for Microchip PIC16F877-04/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

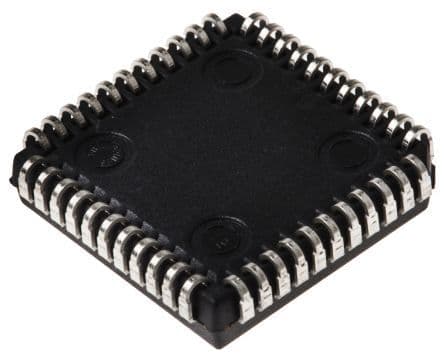

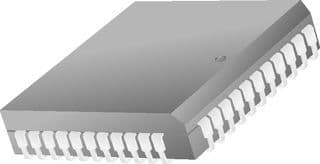

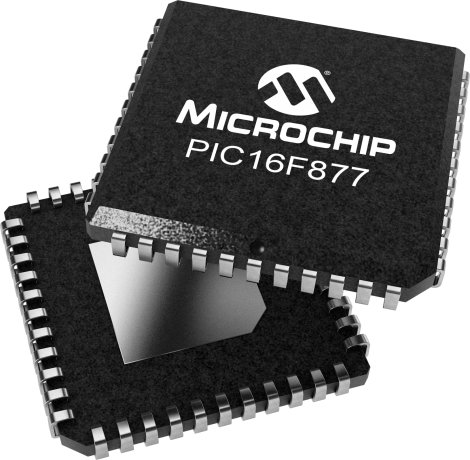

Product Images
