8-bit RISC microcontroller featuring 20MHz clock speed and 14.3KB FLASH memory. Supports I2C, SPI, and USART/UART interfaces. Includes 33 programmable I/O pins, 3 timers/counters, and peripherals like Brown-out Detect, POR, PWM, and WDT. Operates from 4V to 5.5V with a 5V nominal supply, suitable for surface mounting in a PLCC package. Extended temperature range from -40°C to 125°C.
Frequency20MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F877A-E/L technical specifications.
General
Access Time
20us
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
14.3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4V
Mount
Surface Mount
Number of Programmable I/O
33
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F877A-E/L Datasheet
Download the complete datasheet for Microchip PIC16F877A-E/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

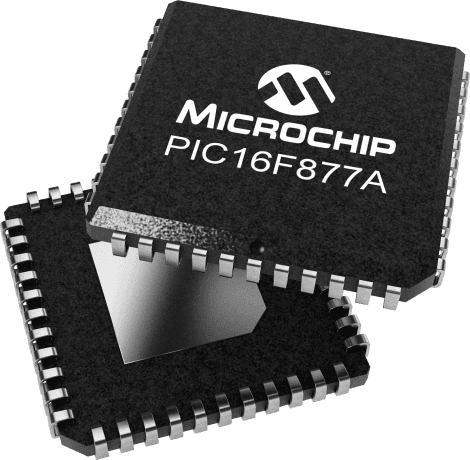

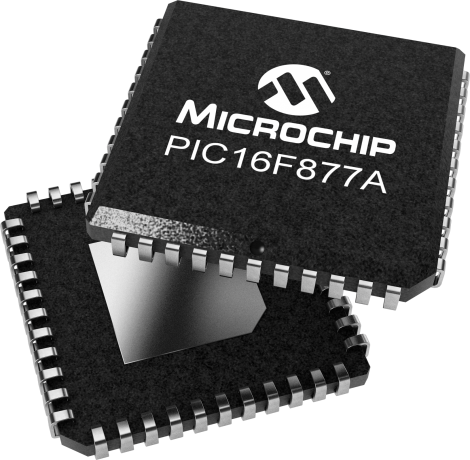

Product Images
