8-bit RISC microcontroller featuring 20 MHz operation, 3.5KB FLASH memory, and 128B RAM. This surface mount device offers 24 I/Os, supports I2C, SPI, and UART interfaces, and includes a watchdog timer. Operating from 2V to 5.5V, it boasts 3 timers/counters and internal oscillator. Packaged in a lead-free SSOP-28, it functions across a -40°C to 85°C temperature range.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F882T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
24
Number of Programmable I/O
28
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F882T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F882T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

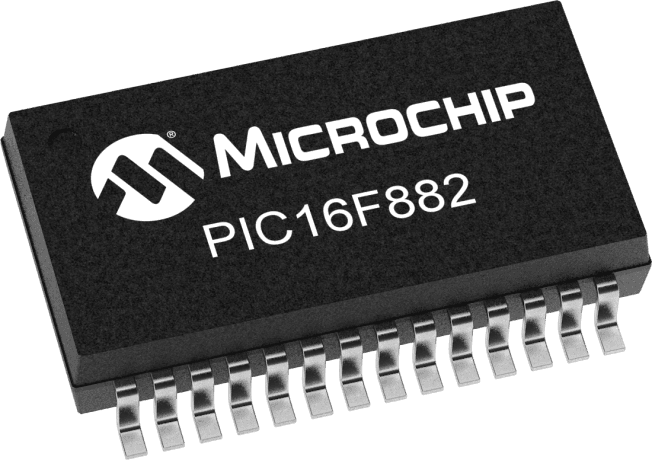

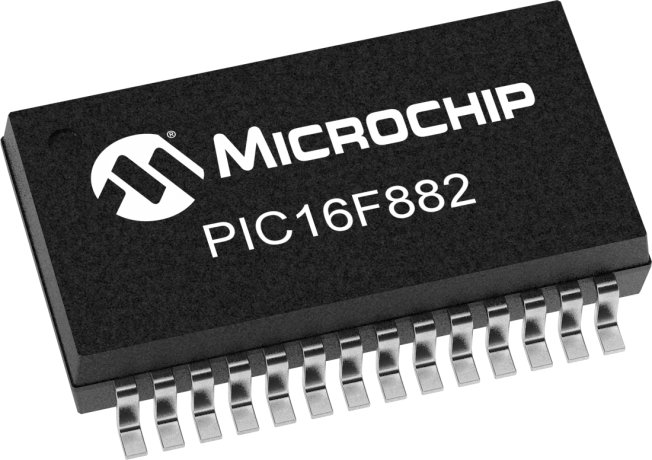

Product Images
