8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 24 I/Os, including 11 A/D channels, 5 PWM channels, and support for I2C, SPI, and UART interfaces. This surface mount device operates from 2V to 5.5V, with a temperature range of -40°C to 85°C. Includes integrated peripherals like Brown-out Detect, POR, WDT, and I2C.
Frequency20MHz
PackageSOIC
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F883-I/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
2.35mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
220uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F883-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F883-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

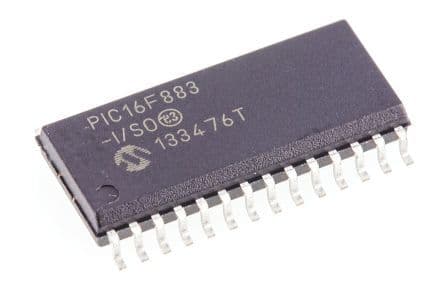

Product Images
