8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at a maximum frequency of 20MHz with an 8-bit data bus. Includes 11 ADC channels and 24 I/Os, with 3 timers/counters. Wide operating voltage range from 2V to 5.5V, suitable for temperatures from -40°C to 85°C. Packaged in a 28-pin PDIP, lead-free and RoHS compliant.
Frequency20MHz
Quick Jump:
Technical Specifications
Microchip PIC16F883-I/SP technical specifications.
General
| Access Time | 20us |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 34.67mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 7KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Number of ADC Channels | 11 |
| Number of I/Os | 24 |
| Number of Timers/Counters | 3 |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | PIC16F88x |
| Weight | 0.077603oz |
| Width | 7.24mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F883-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F883-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

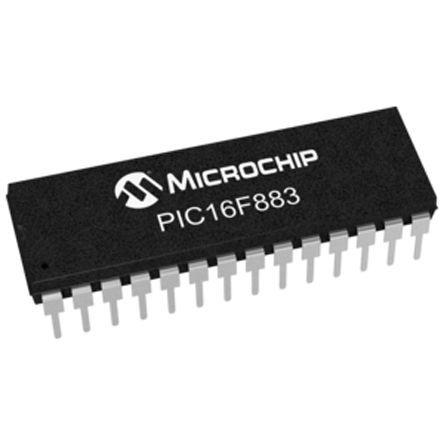

Product Images
