8-bit RISC microcontroller featuring 20MHz operation, 14KB FLASH memory, and 368B RAM. This PDIP-packaged MCU offers 24 programmable I/O pins, supporting I2C, SPI, and UART interfaces. Integrated peripherals include Brown-out Detect, POR, PWM, and a Watchdog Timer. Operating voltage ranges from 2V to 5.5V, with an extended temperature range of -40°C to 125°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F886-E/SP technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F886-E/SP Datasheet
Download the complete datasheet for Microchip PIC16F886-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

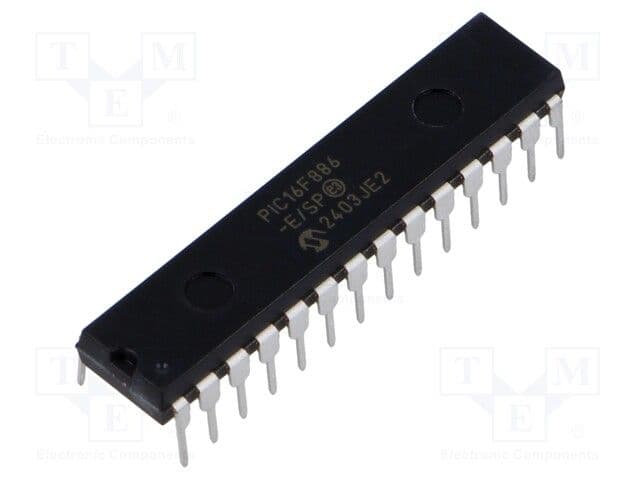

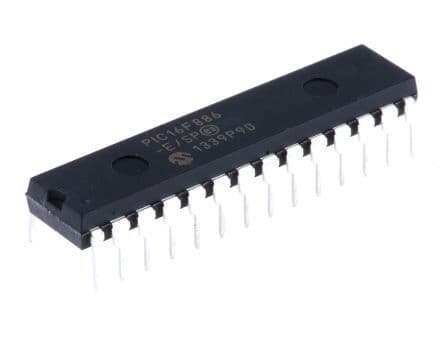

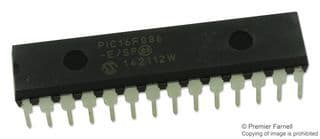

Product Images
