8-bit PIC RISC Microcontroller featuring 14KB Flash memory and 368B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 24 I/Os, including 11 A/D channels, 2 PWM channels, and I2C, SPI, and UART interfaces. Supports 2V to 5.5V supply voltage and operates from -40°C to 85°C. Through-hole mounted in a 28-pin SPDIP package.
Frequency20MHz
PackageDIP
Current220uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F886-I/SP technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
220uA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F886-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F886-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

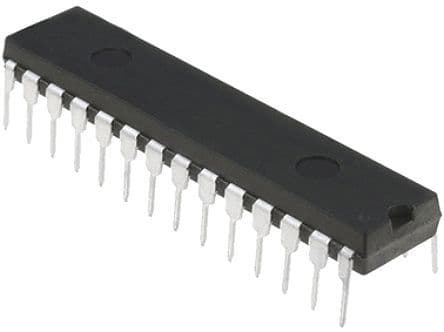

Product Images
