8-bit RISC microcontroller featuring 20 MHz operation and 14KB FLASH memory. This surface-mount device offers 35 programmable I/O pins, 3 timers/counters, and supports I2C, SPI, and UART/USART interfaces. Operating from 2V to 5.5V, it includes a watchdog timer and peripherals like Brown-out Detect/Reset and POR. Housed in a 44-pin QFN package, this lead-free, RoHS compliant component is rated for -40°C to 125°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F887-E/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
35
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F887-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F887-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

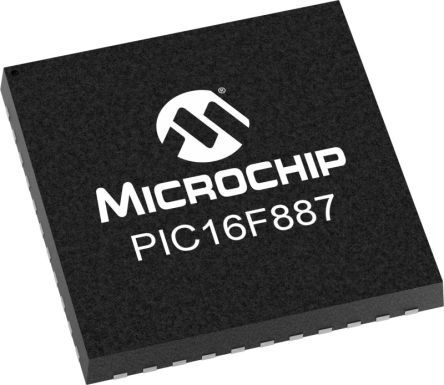

Product Images
