8-bit RISC microcontroller featuring 20MHz clock speed and 14KB FLASH memory. This through-hole device offers 35 I/O pins, 14 ADC channels, and supports I2C, SPI, and UART interfaces. It operates from 2V to 5.5V with a maximum power dissipation of 800mW and includes peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. Packaged in a 40-pin PDIP, this RoHS compliant component is designed for a wide operating temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
Current220uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F887-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
14
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
368B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
220uA
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F887-I/P Datasheet
Download the complete datasheet for Microchip PIC16F887-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

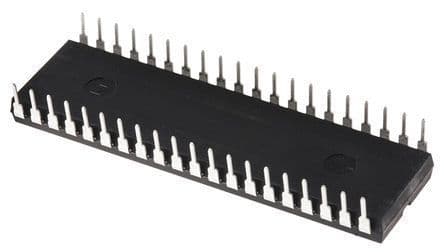

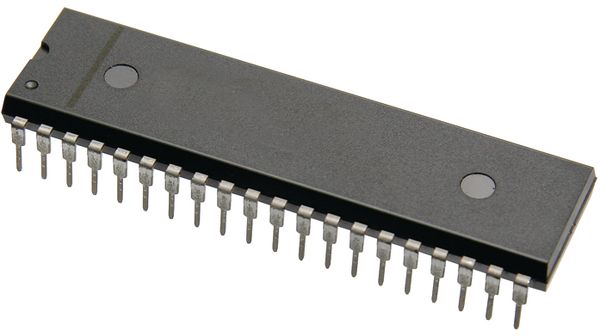

Product Images
