8-bit RISC Flash Microcontroller featuring a 20MHz core frequency. This surface mount device offers 35 programmable I/O pins, 14KB of FLASH memory, and 368 bytes of RAM. Integrated peripherals include PWM and I2C, with support for I2C, SPI, and UART/USART interfaces. Operating within a 2V to 5.5V supply range, it boasts a maximum power dissipation of 800mW and an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F887T-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
35
Number of Timers/Counters
3
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F887T-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F887T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

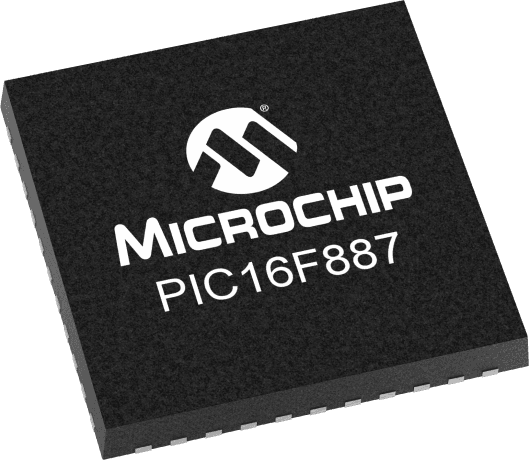

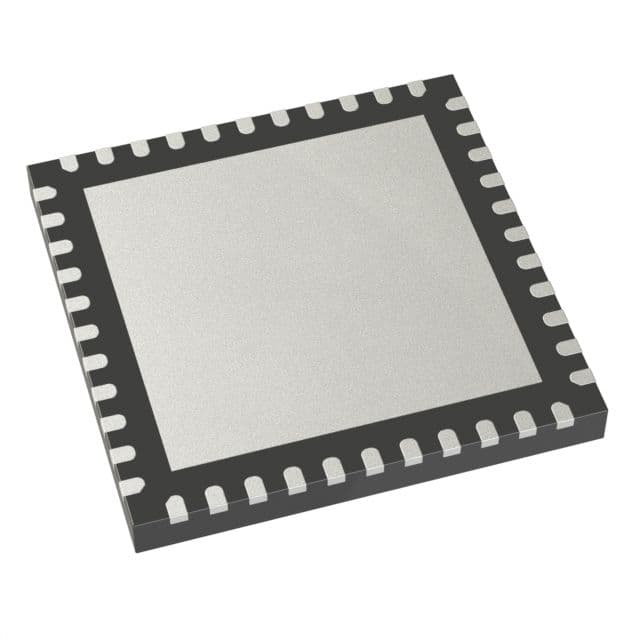

Product Images
