8-bit RISC microcontroller with 20MHz clock speed and 7KB FLASH memory. Features 368B RAM, 16 programmable I/Os, and 3 timers/counters. Supports SSP, USART, I2C, SPI, and UART interfaces. Operates from 4V to 5.5V with an internal oscillator. Packaged in a lead-free, surface-mount SOIC package. Includes Brown-out Detect/Reset, POR, PWM, and WDT peripherals.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F88T-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
SSP, USART, I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
4V
Mount
Surface Mount
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
368B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F88T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F88T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

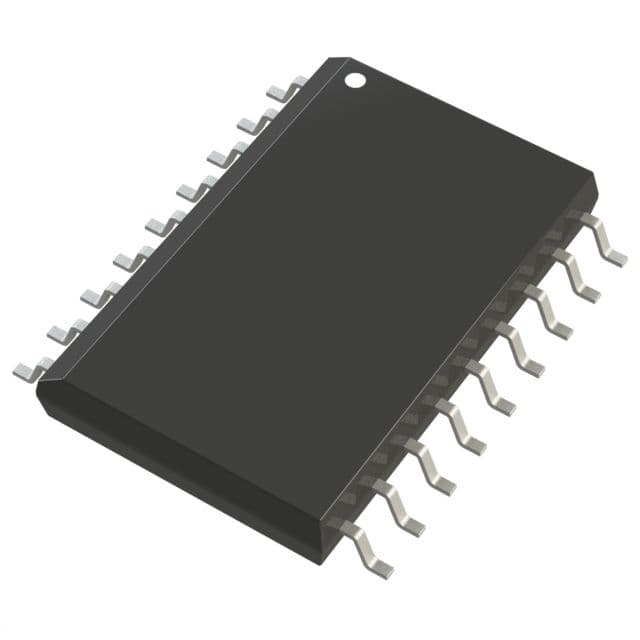

Product Images
