8-bit RISC microcontroller featuring 20MHz clock speed and 7KB FLASH memory. This through-hole component offers 256B RAM, 24 I/O pins, and supports I2C, SPI, and UART interfaces. Integrated peripherals include a watchdog timer, brown-out detect, and one 5-channel A/D converter. Operates from 4.5V to 5.5V supply voltage with a maximum operating temperature of 85°C.
Frequency20MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F913-I/SP technical specifications.
General
Access Time
20us
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.15inch
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F913-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F913-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

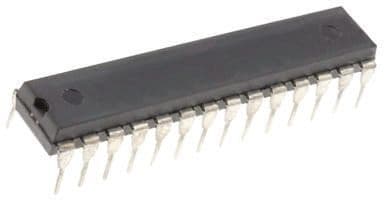

Product Images
