8-bit PIC RISC Microcontroller (MCU) featuring 7KB Flash memory and 256B RAM. Operates at up to 20MHz with a 4.5V to 5.5V supply voltage range. Offers 35 I/O pins, including 36 programmable I/Os, and supports I2C, SPI, and UART interfaces. Includes 8 ADC channels, 2 PWM channels, and 3 timers/counters. Packaged in a 44-pin TQFP with a 0.5mm lead pitch for surface mounting.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F914-I/PT technical specifications.
General
Access Time
20us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Inputs
35
Number of Outputs
34
Number of Programmable I/O
36
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F914-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F914-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

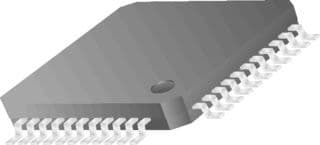

Product Images
