8-bit RISC microcontroller featuring 20MHz clock speed and 14KB FLASH memory. This integrated circuit offers 35 programmable I/O pins, 8 analog-to-digital converter channels, and multiple communication interfaces including I2C, SPI, and UART. Operating from 4.5V to 5.5V, it includes peripherals like a watchdog timer and PWM channels. Available in a PDIP package for through-hole or surface mount applications.
Frequency20MHz
PackagePDIP
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F917-I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.195inch
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole, Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
352B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F917-I/P Datasheet
Download the complete datasheet for Microchip PIC16F917-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

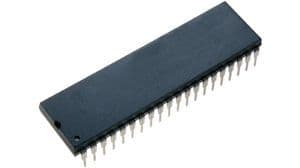

Product Images
