8-bit RISC microcontroller featuring 14KB FLASH memory and 352B RAM. Operates at a maximum frequency of 20MHz with an 8-bit address and data bus. Offers multiple interfaces including I2C, SPI, UART, and USART, along with 8 ADC channels and 2 PWM channels. Packaged in a 44-pin TQFP with a 0.5mm lead pitch, suitable for surface mounting. RoHS compliant and operates within a temperature range of -40°C to 85°C.
Frequency20MHz
PackageTQFP
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F917-I/PT technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
14KB
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Inputs
35
Number of Outputs
34
Number of Programmable I/O
35
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Package Quantity
160
Packaging
Tray
Peripherals
PWM, LCD, I2C
Radiation Hardening
No
RAM Size
352B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
220uA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F917-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F917-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

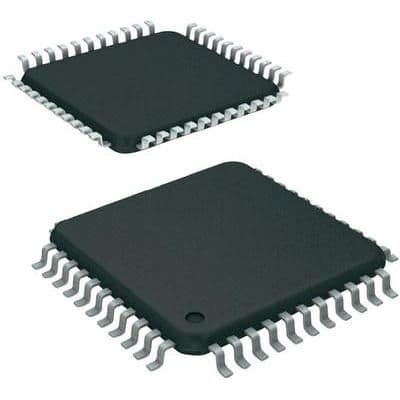

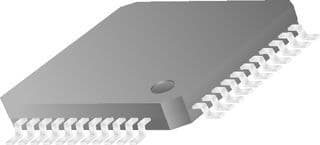

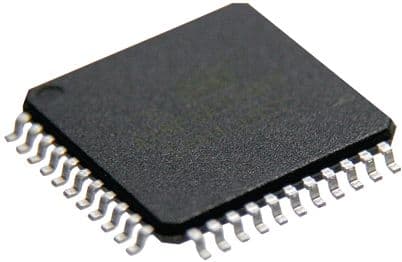

Product Images
