8-bit microcontroller featuring a PIC core architecture, operating at up to 4MHz with an 8-bit data bus. This surface mount device offers 768 bytes of OTP EPROM memory and 24 bytes of RAM, with an access time of 4µs. Equipped with 20 programmable I/O pins and 8 timers/counters, it includes POR and WDT peripherals. Designed for operation between 4.5V and 5.5V, with a maximum power dissipation of 800mW and an operating temperature range of 0°C to 70°C.
Frequency4MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LC55A-04/SS technical specifications.
General
| Access Time | 4us |
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Lead Free | Lead Free |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 512B |
| Memory Type | EPROM, , OTP |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Programmable I/O | 20 |
| Number of Timers/Counters | 8 |
| Oscillator Type | External |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| Radiation Hardening | No |
| RAM Size | 24B |
| RoHS Compliant | Yes |
| Series | PIC® 16C |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LC55A-04/SS Datasheet
Download the complete datasheet for Microchip PIC16LC55A-04/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

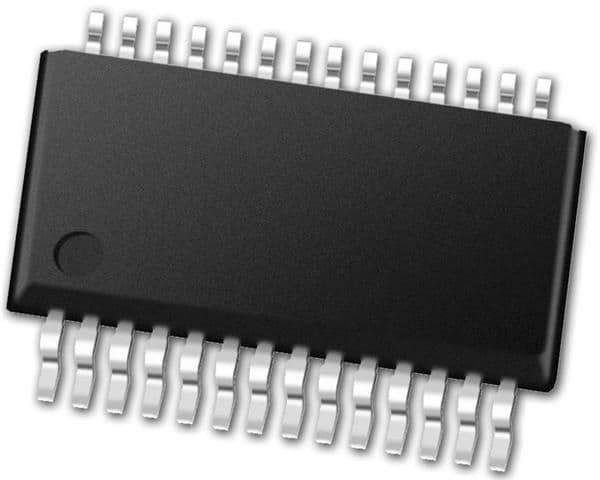

Product Images
