8-bit RISC microcontroller featuring a 4MHz clock speed and 3.5KB OTP memory. This microcontroller offers 22 programmable I/O pins, three timers/counters, and supports I2C, SPI, and SSP interfaces. It operates from a 2.5V to 5.5V supply voltage with a maximum operating temperature of 70°C. Peripherals include Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Packaged in a 28-pin SOIC, this lead-free component is RoHS compliant.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16LC72A-04/SO technical specifications.
General
| Access Time | 4us |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 4MHz |
| Interface | I2C, SPI, SSP |
| Lead Free | Lead Free |
| Max Frequency | 4MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | OTP |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 22 |
| Number of Programmable I/O | 22 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | Yes |
| Series | PIC® 16C |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16LC72A-04/SO Datasheet
Download the complete datasheet for Microchip PIC16LC72A-04/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

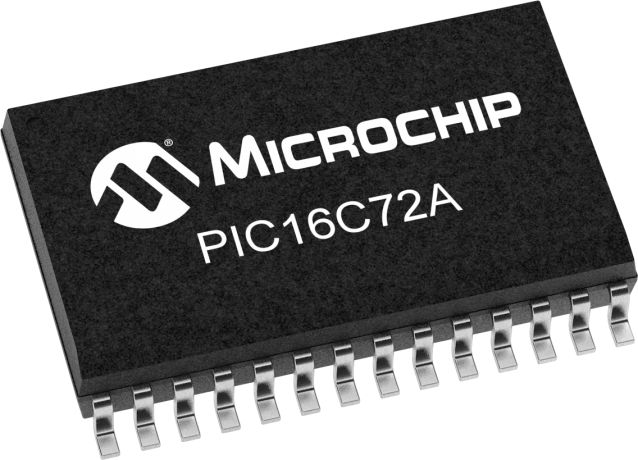

Product Images
