8-bit RISC microcontroller featuring a 4MHz clock speed and 3.5KB OTP memory. This integrated circuit offers 128 bytes of RAM, 22 programmable I/O pins, and three timers/counters. Supports I2C, SPI, and SSP interfaces, operating from a 2.5V to 5.5V supply. Packaged in a 28-pin SOIC, it functions within an industrial temperature range of -40°C to 85°C.
Frequency4MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16LC72A-04I/SO technical specifications.
General
Access Time
4us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
OTP
Min Supply Voltage
2.5V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Package Quantity
27
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC72A-04I/SO Datasheet
Download the complete datasheet for Microchip PIC16LC72A-04I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

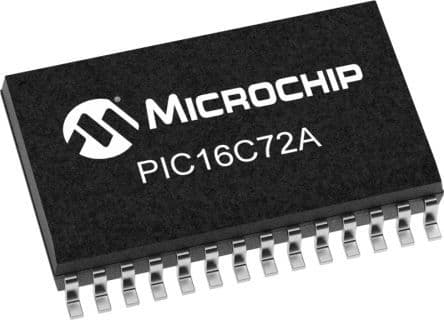

Product Images
