8-bit RISC microcontroller featuring a PIC core, operating at up to 4MHz. This OTP (One-Time Programmable) microcontroller offers 3.5KB of program memory and 128 bytes of RAM. It supports I2C, SPI, and SSP interfaces, with 22 programmable I/O pins. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Designed for operation between -40°C and 85°C, with a supply voltage range of 2.5V to 5.5V. Packaged in a 28-pin SSOP.
Frequency4MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16LC72A-04I/SS technical specifications.
General
Access Time
4us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Max Frequency
4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
OTP
Min Supply Voltage
2.5V
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LC72A-04I/SS Datasheet
Download the complete datasheet for Microchip PIC16LC72A-04I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

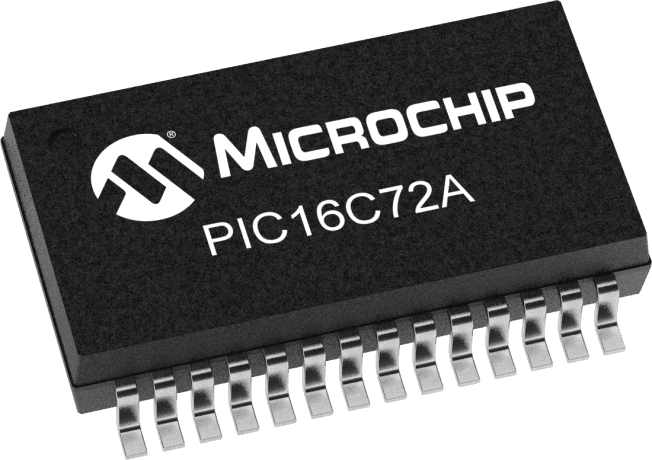

Product Images
